GBR121A

LED Downlight

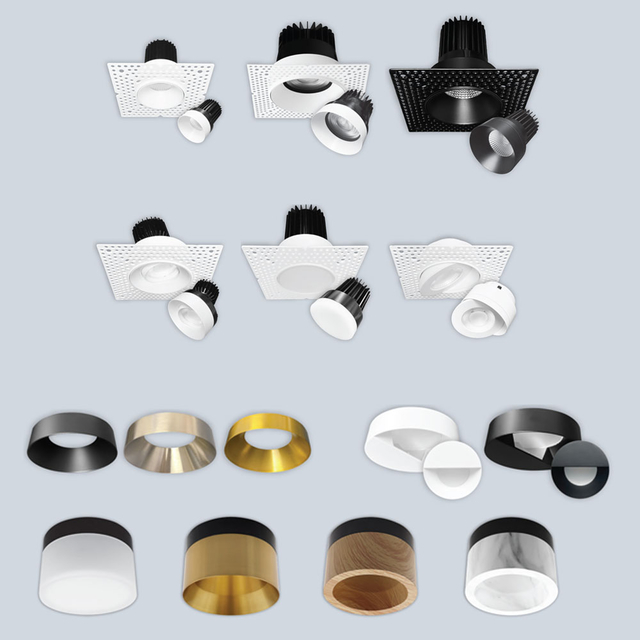

The modular LED downlight presents a versatile lighting solution with options for round or square designs, single or multiple units, and various mounting choices, including recessed, flanged, or flangeless configurations. Its adaptable design allows for seamless integration into diverse architectural settings, providing both aesthetic flexibility and functional versatility.
Specification Sheet

Resources

Adjustability

  • Rotatable Optics
  • Tilt Optics

Beam Angle

  • 15
  • 24
  • 30
  • 40
  • 50
  • 60

CCT

  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K

CRI

  • 80 CRI
  • 90 CRI
  • 97 CRI

Color / Finish

  • Black
  • Brass
  • Custom
  • Dark Grey
  • Grey
  • White

Dimming Protocol

  • 0-10 V
  • 1-10 V
  • DALI
  • DMX
  • PWM
  • Triac
  • Zigbee

Dynamic LED Color

  • RGB
  • RGBW
  • Tunable White

Listings

  • cETLus

Lumens

  • 385 Lm
  • 670 Lm
  • 840 Lm
  • 1155 Lm
  • 1455 Lm
  • 1570 Lm
  • 1890 Lm
  • 2050 Lm
  • 2640 Lm
  • 2930 Lm
  • 3370 Lm
  • 3810 Lm

Ratings & Compliance

  • IP20

Static LED Color

  • Blue
  • Green
  • Red
  • Yellow

Voltage

  • 100-277 V
  • 12 V
  • 120-347 V
  • 24 V

Watts

  • 3 w
  • 5 w
  • 7 w
  • 10 w
  • 15 w
  • 18 w
  • 20 w
  • 25 w
  • 30 w
  • 40 w
  • 50 w
